WC10/RX125/WC15/WC17H/BX10R
Alfine
846599
WC wood chipper specification
Model | WC10/WC10H | WC15 /WC15H | BX10R |
PTO driven | |||
HP Range | 18-50HP | 30-70HP | 50-100HP |
Chipper Capacity | 4 Dia. (max. 12 slab) | 6 Dia. (max. 12 slab) | 9 Dia. (up to 14 slab) |
Rotor Size | 25" | 29" | 37" |
Rotor Knives QTY | 4PCS | 4PCS | 4PCS |
Knife Type | Hardened tool steel CR12 | Hardened tool steel CR12 | Hardened tool steel CR12 |
Knife Size | 210*60*9mm | 210*60*9mm | 320*100*16mm |
Rotor Weight | 50kgs | 98kgs | 242kgs |
Rotor thickness | 18mm | 25mm | 30mm |
Feeding System | Manual or Hydraulic | Manual or Hydraulic | Hydraulic |
Mount System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
Dimensions (Hopper Folded) | 1600*1600*1830mm | 1850*1550*2040mm | 1950*1750*2040mm |
Hopper Opening | 500 x 500mm | 6½ x 12 | 640 x 640 mm |
Discharge Hood Rotation | 360° | 360° | 360° |
Discharge Hood Height | 60" | 74" | 87" |
Rated RPM | 540-1000 | 540-1000 | 540-1000 |
Net weight | 230/385 kgs | 400/500 kgs | 780 kgs |

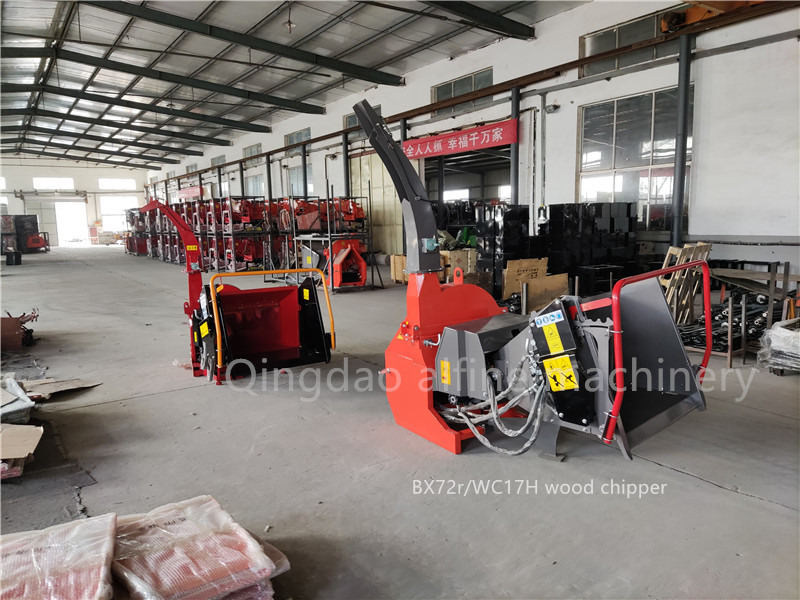

Model | RX125/BX52R | WC17H/BX72R |
Drive System | ||
HP Range | 30-70HP | 45-70HP |
Chipper Capacity | 5 inch/125mm Dia | 7inch Dia |
Rotor Size | 24.8" | 35" |
Rotor Knives QTY | 4PCS | 4PCS |
Knife Type | Hardened tool steel ,Durable Chromium CR12 | Hardened tool steel, Durable Chromium CR12 |
Knife Size | 210*60*9mm | 240*60*9mm |
Rotor Weight | 65kgs | 98kgs |
Rotor thickness | 25mm | 25mm |
Feeding System | Hydraulic | Hydraulic |
Mount System | 3 Point Hitch | 3 Point Hitch |
Dimensions (Hopper Folded) | 1880*1710*2040mm | 2280*1630*2250mm |
Hopper Opening | 6½ x 12 | 630 x 630 mm |
Discharge Hood Rotation | 360° | 360° |
Discharge Hood Height | 74" | 84" |
Rated RPM | 540-1000 | 540-1000 |
Net weight | 400 kgs | 540 kgs |
