DH22 DH40 DH50 DH80 diesel engine wood chipper with hydraulic feeding

DH series diesel engine wood chipper use changchai 22hp ,40hp,50hp diesel engine,max 8inch/20cm chipping capacity,hydraulic feeding system.

Can be towed by ATV,or use ATV trailer transport

DH diesel engine wood chipper specicifcation

Model	DH22	DWC40	DWC50
Engine Model	Changchai	changchai490	Changchai4L68
Type	Single cylinder, horizontal, four-stroke	vertical,water cooled,4-stroke,direct injection	vertical,water cooled,4-stroke,direct injection
No.of cylinders	1	4	4
Bore*Stroke		80*90mm	80*90mm
Rated power/rev.	16.2KW/2200rpm	29.4KW/2200rpm	38.1KW/2200rpm
Total displacement	1.194L	1.809L	1.909L
Starting type	Electric start	Electric start	Electric start
Chipper capacity (diameter)	8 inch	8inch	8inch
Feeding system	full hydraulic (forward, stop and reverse adjustable)	full hydraulic (forward, stop and reverse adjustable)	full hydraulic (forward, stop and reverse adjustable)
Rotor plate size	60cm	60cm	60cm
Rotor plate weight	85kg	85kg	85kg
Knives number	1 stationary knife; 2 rotor knives	1 stationary knife; 2 rotor knives	1 stationary knife; 2 rotor knives
Dimensions (to hopper discharge)	1400L1450W1400H(mm)	1700L1450W1400H(mm)	1700L1450W1400H(mm)
Feed hopper inner opening	20*22cm	20*22cm	20*22cm
Discharge hood height	200cm	200cm	200cm
Rated rotary speed	1200RPM	1200RPM	1200RPM
Total Weight	550	650	750kg
Working efficiency	8-11cbm/h	9-12cbm	10-12cbm/h

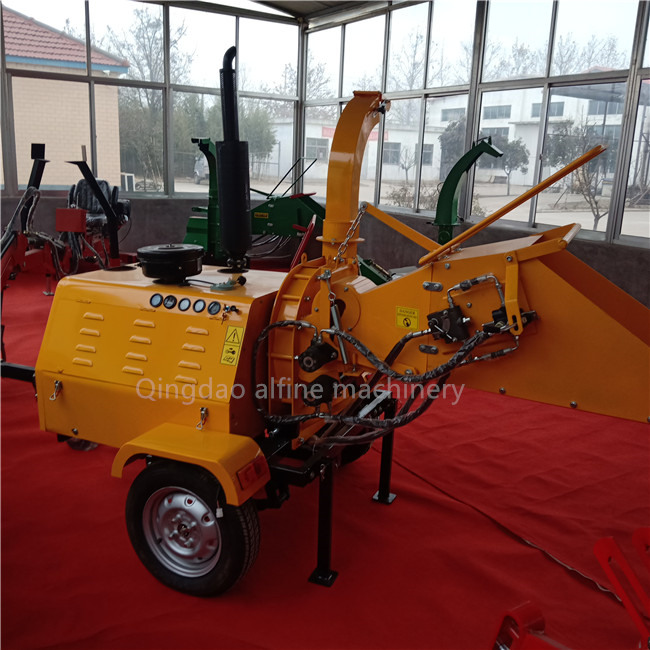

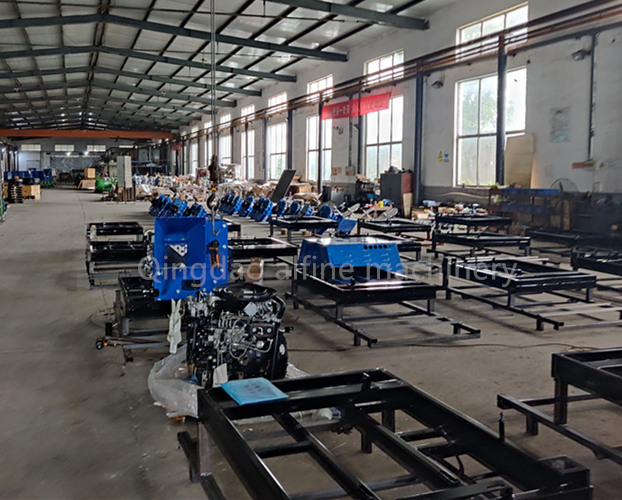

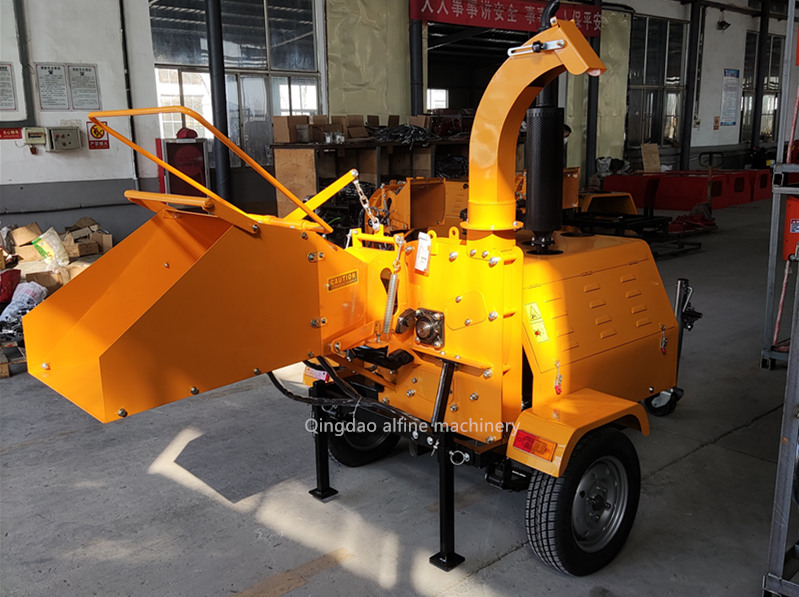

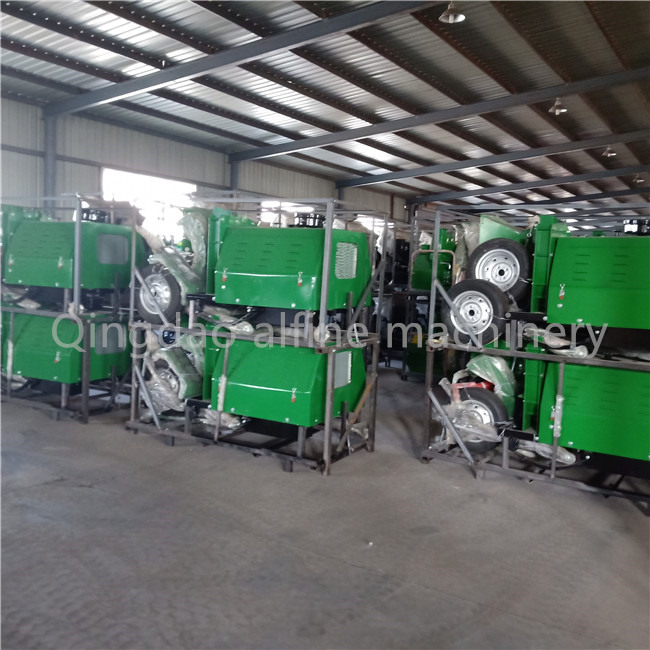

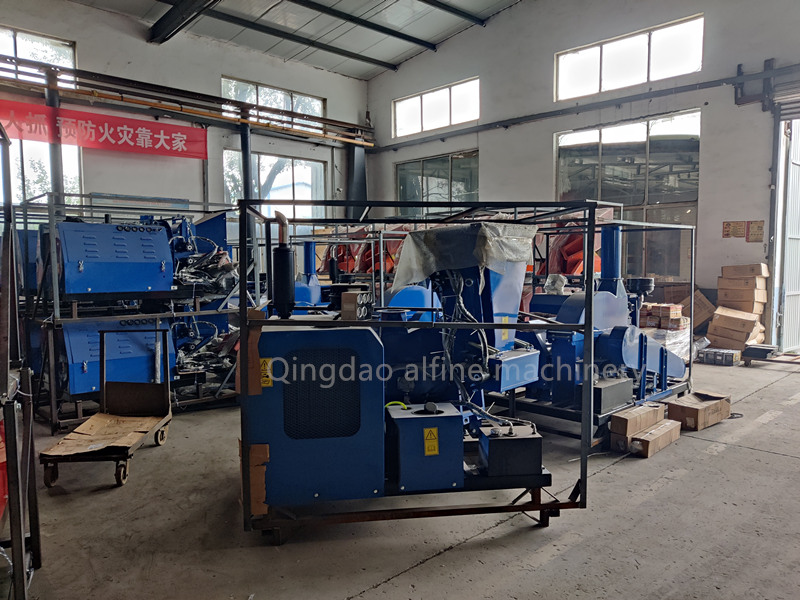

diesel engine wood chipper diesel wood chipper (14)_副本 DH50 DH80 diesel engine wood chipper (1) DH22 DH40 DH40 DH80 diesel wood chipper (1)

DH80 80 horpse power 25cm chipping capacity diesel engine wood chipper

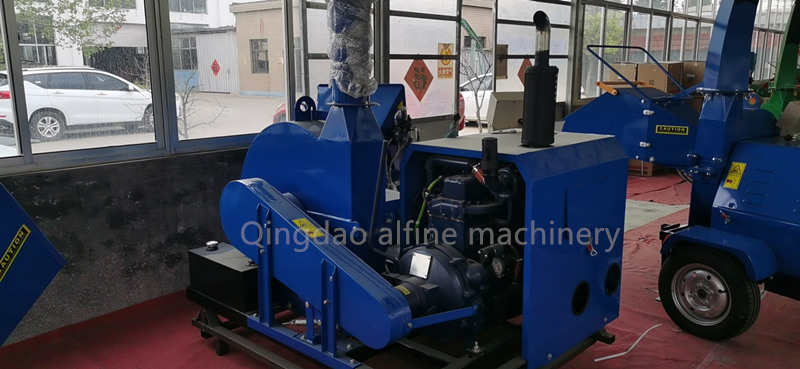

DH80 diesel engine wood chipper
