BH-6 BH-7 BH-8
Alfine
8430699

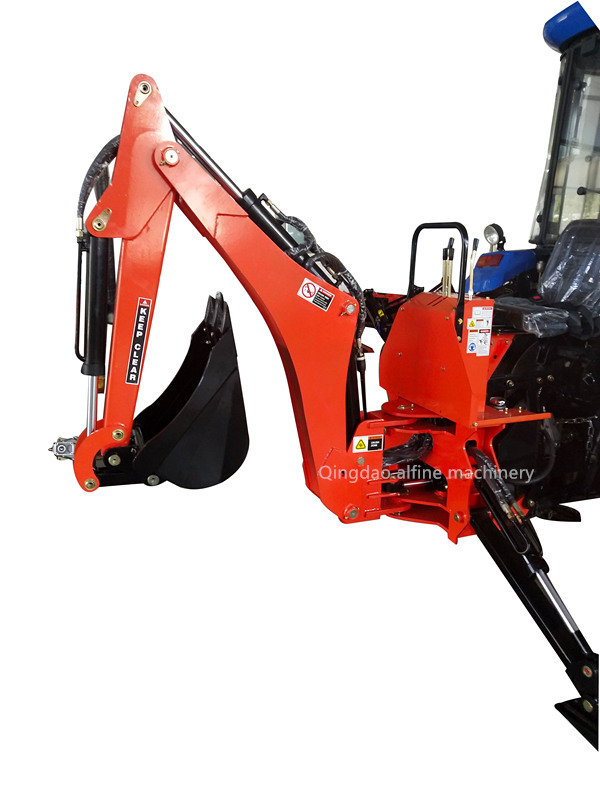

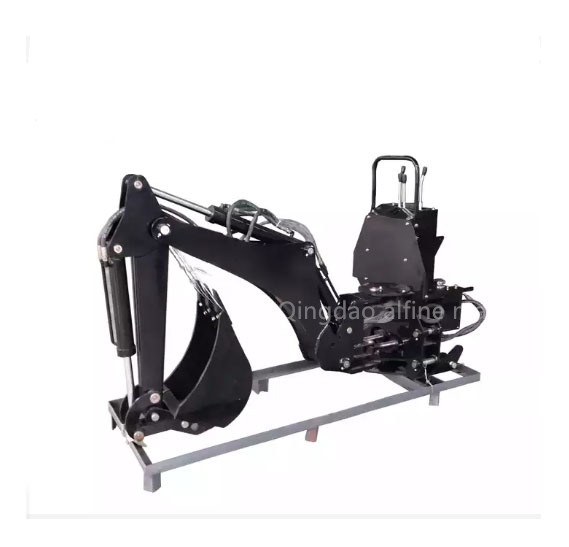

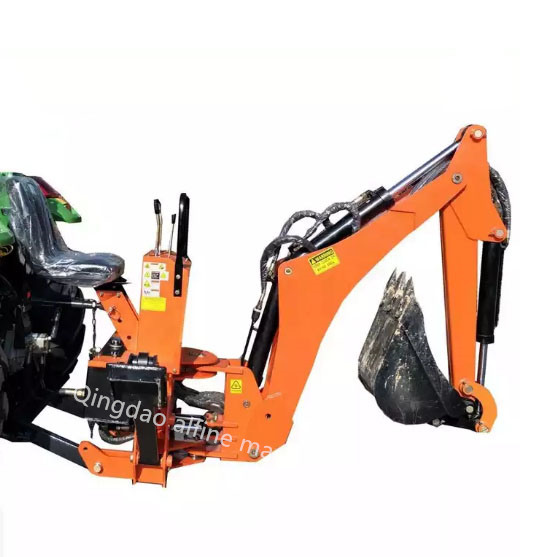

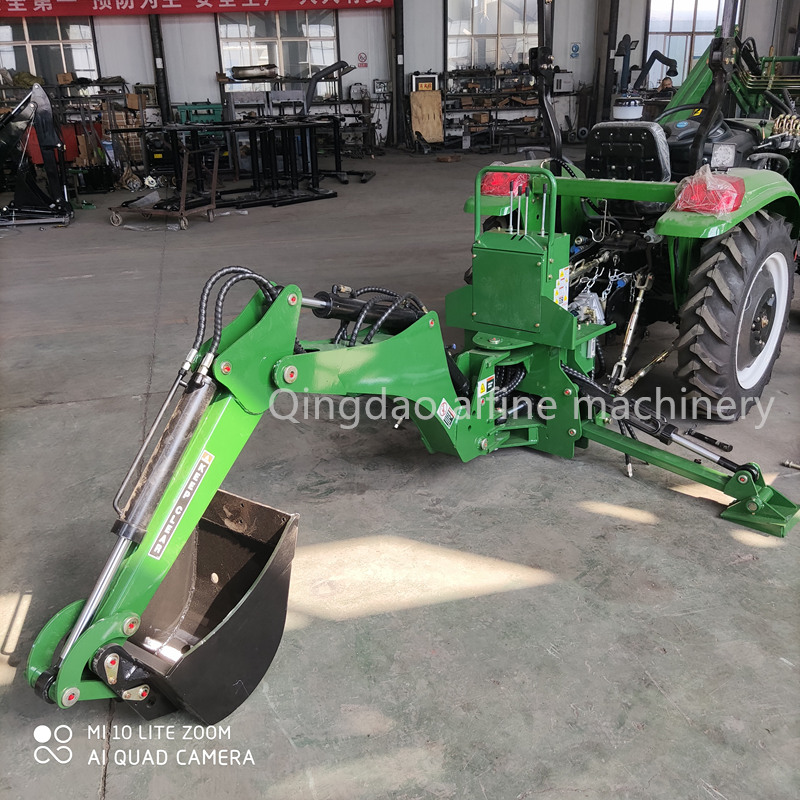

PTO backhoe ,tractor rear backhoe features
PTO driven hydraulic pump ensures sufficient flow and pressure
No need for hydraulic remotes on the tractor
Conveniently attaches via the three point linkage
180 degree boom swing
Replaceable bolt on teeth
Greasable pivot points
PTO backhoe ,tractor rear backhoe specification
Model | BH-5 | BH-6 | BH-7 | BH-8 |
Maximum Digging Depth | 1830mm | 2133mm | 2438mm | 2745mm |
Digging Depth (two foot flat bottom) | 1676mm | 1980mm | 2286mm | 2590mm |
Swing Arc | 180 ° | 180 ° | 180 ° | 180 |
Loading Height (bucket at 60 ° ) | 1270mm | 1524mm | 1778mm | 2032mm |
Reach from Center Line of Swing Pivot | 2286mm | 2590mm | 2895mm | 3200mm |
Transport Height (maximum) | 1245mm | 1498mm | 1752mm | 2032mm |
Bucket Rotation | 180 | 180 ° | 180 ° | 180 |
Loading Reach (bucket at 60 ° ) | 865mm | 965mm | 1092mm | 1220mm |
Transport Overhang | 1016mm | 1042mm | 1066mm | 1092mm |
Undercut | 660mm | 712mm | 762mm | 812mm |
Stabilizer Spread, down position | 1700mm | 1980mm | 2260mm | 2565mm |
Stabilizer Spread, up position | 1066mm | 1194mm | 1550mm | 1828mm |
Bucket Cylinder Digging Force | 930kgs | 1112kgs | 1288kgs | 1360kgs |
Dipper stick Cylinder Digging Force | 476kgs | 566kgs | 910kgs | 1135kgs |
Shipping Weight (less bucket) | 322kgs | 430kgs | 480kgs | 510kgs |
Hydraulic Volume 3'4" Requirements | 3 to 4 GPM | 3 to 4 GPM | 4 to 5 GPM | 5 to 6 GPM |
Hydraulic Pressure Requirements | 2000psi | 2000 psi | 2000 psi | 2000 psi |
Recommended Tractor HP | 18-25HP | 20 - 35 HP | 25 - 45 HP | 35 - 65 HP |
